The Heat Factor: Understanding How Temperature Affects Solar Panel Performance

That's right—contrary to popular belief, hot weather can actually decrease solar panel efficiency. This comprehensive guide will explore the science behind this phenomenon and provide practical solutions to maximize your solar investment.

The Surprising Relationship Between Heat and Solar Panel Efficiency

The efficiency of a solar panel isn't determined by heat but by sunlight. In fact, solar panels are tested at a standard temperature of 25°C (77°F), and their efficiency decreases as temperatures rise above this benchmark.

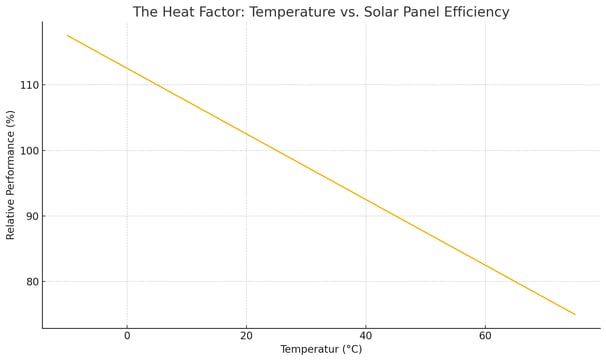

Most solar panels lose between 0.3% to 0.5% of their efficiency for every degree Celsius rise in temperature above 25°C.

This means on a scorching 95°F (35°C) day, your panels could be operating at approximately 3-5% lower efficiency than their rating suggests. Over the course of a hot summer, this efficiency loss can add up to meaningful reductions in energy production.

The Physics Behind Temperature Effects

To understand why this happens, we need to dive into the quantum physics of how solar cells work.

The Band Gap Effect

At the heart of a solar panel is the semiconductor material (typically silicon) that converts light into electricity through the photovoltaic effect. This process relies on the semiconductor's "band gap"—the energy difference between its valence band (where electrons normally reside) and its conduction band (where electrons can move freely to produce electricity).

When temperature increases, this band gap actually decreases, which affects how the solar cell operates:

• A smaller band gap means electrons need less energy to jump to the conduction band

• This allows more electrons to get excited, slightly increasing the current

• However, it also significantly reduces the voltage the panel can produce

• Since power = voltage × current, and the voltage drop is more substantial than the current gain, the overall power output decreases

For a more detailed explanation, you might find this video helpful:

Key Temperature Effects on Solar Cell Parameters

As temperatures rise, solar panels experience several changes in their electrical parameters:

1. Open-Circuit Voltage (Voc): This is the maximum voltage available from a solar cell, and it decreases significantly with increasing temperature (typically -0.3% to -0.5% per °C).

2. Short-Circuit Current (Isc): This is the current through the solar cell when the voltage across it is zero. It actually increases slightly with temperature (about +0.05% to +0.1% per °C).

3. Maximum Power Output (Pmax): The combined effect of these changes results in a net decrease in the maximum power output with increasing temperature (-0.3% to -0.5% per °C).

Real-World Consequences of High Panel Temperatures

The effects of high temperatures on solar panels go beyond just reduced efficiency:

1. Accelerated Degradation

Heat stress accelerates the aging process of solar panels. Materials expand and contract at different rates, creating micro-cracks in solar cells and weakening connections. Research suggests that panels operating in consistently hot environments may degrade 20-30% faster than those in moderate climates.

2. Thermal Stress

Different materials in a solar panel (silicon, metal, glass, and polymers) expand and contract at different rates when heated. This creates internal stresses that can lead to:

• Micro-cracks in the solar cells

• Solder bond failures

• Delamination (separation of the panel layers)

• Frame warping

3. Reduced Lifespan

Most solar panels are warrantied for 25-30 years, with manufacturers guaranteeing at least 80% of their rated power by the end of this period. However, panels consistently operating at high temperatures may struggle to meet these guarantees due to accelerated degradation.

How Hot Do Solar Panels Actually Get?

Solar panels can reach temperatures significantly higher than the ambient air temperature, typically 20-40°F (11-22°C) hotter. This means:

• On a 77°F (25°C) day, panels might operate at around 100°F (38°C)

• On a 95°F (35°C) day, panels could reach 125-135°F (52-57°C)

• In extreme cases, poorly ventilated rooftop panels in hot climates can exceed 160°F (71°C)

These extreme temperatures severely impact both short-term performance and long-term reliability.

Effective Cooling Solutions for Solar Panels

Fortunately, there are various methods to help keep your solar panels cooler and running more efficiently:

Passive Cooling Methods

These approaches require no energy input and rely on natural processes:

1. Proper Installation Height: Mounting panels 3-6 inches above the roof surface creates a gap for natural air circulation, which can reduce operating temperatures by 5-10°F.

2. Reflective Materials: Using white or reflective roofing materials around solar installations can reduce ambient temperatures.

3. Strategic Placement: Consider locations that balance maximum sunlight exposure with natural airflow.

4. Heat Sink Technology: Some advanced panels include integrated heat sinks that help dissipate heat more effectively.

Active Cooling Systems

These systems require external power but can provide more substantial cooling:

1. Forced Air Cooling: Fans or blowers that circulate air across the panels.

2. Water Cooling: Circulating water across the back of panels to absorb heat (commonly used in concentrated PV systems).

3. Sprinkler Systems: Periodic water spraying on panel surfaces, which cools through evaporation.

4. Hybrid PV/T Systems: These capture heat from the panels to heat water, simultaneously cooling the panels and providing hot water.

Advanced Materials and Designs

Research into heat-resistant solar technology is advancing rapidly:

1. High-Temperature Solar Cells: Newer cells designed specifically to maintain higher efficiency at elevated temperatures.

2. Phase Change Materials (PCMs): Materials that absorb heat when they melt and release it when they solidify, helping to regulate panel temperature.

3. Self-Cooling Backplates: Innovative designs incorporating hygroscopic materials that use humidity from the air for cooling.

4. Radiative Cooling Films: Special coatings that enhance the panel's ability to radiate heat away as infrared energy.

Economic Benefits of Temperature Management

Investing in temperature management for your solar system can provide significant economic returns:

• Increased Energy Production: A 10°C reduction in operating temperature can increase annual energy output by 3-5%.

• Extended System Lifespan: Better temperature management can extend the productive life of your solar system by several years.

• Improved ROI: While some cooling solutions require upfront investment, the combined benefits of increased production and longer system life typically deliver positive returns.

Practical Tips for Homeowners

If you already have solar panels or are considering installation, here are some practical steps to optimize performance in hot weather:

1. Ensure Adequate Airflow: Make sure your installation includes sufficient space between the panels and the roof surface.

2. Schedule Regular Cleanings: Dust and dirt act as insulators, trapping heat. Clean panels operate 5-7% cooler.

3. Consider Panel Color: While most panels are dark blue or black, some manufacturers offer panels with lighter backsheets that absorb less heat.

4. Monitor Performance: Track your system's output during hot weather and compare it to expected performance to identify potential temperature-related issues.

5. Choose the Right Technology: If you live in a hot climate, consider investing in panels with lower temperature coefficients, even if they're slightly more expensive.

Looking to the Future

The solar industry continues to innovate in response to temperature-related challenges:

• Bifacial Panels: These capture light from both sides and often operate at lower temperatures due to better ventilation.

• Perovskite Solar Cells: Next-generation solar technology that may offer better high-temperature performance.

• Smart Cooling Systems: Automated systems that activate cooling only when needed, optimizing the balance between cooling energy use and improved panel output.

Conclusion: Keeping Your Cool for Maximum Solar Performance

Understanding how temperature affects solar panel performance is crucial for maximizing your renewable energy investment. While heat is an unavoidable challenge for solar technology, proper planning, installation, and maintenance can significantly mitigate its effects.

By implementing some of the cooling strategies discussed in this article, you can ensure your solar system operates at peak efficiency even during the hottest months, delivering more clean energy and a better return on your investment.
